Q-SYS VisionSuite elevates collaboration in high-impact spaces.
Deliver dynamic, real-time camera switching without creating camera presets. Elevate the presentation experience with autonomous full-body presenter tracking driven by advanced computer vision. Tie it all together to automate the full-room experience with the power of Q-SYS.

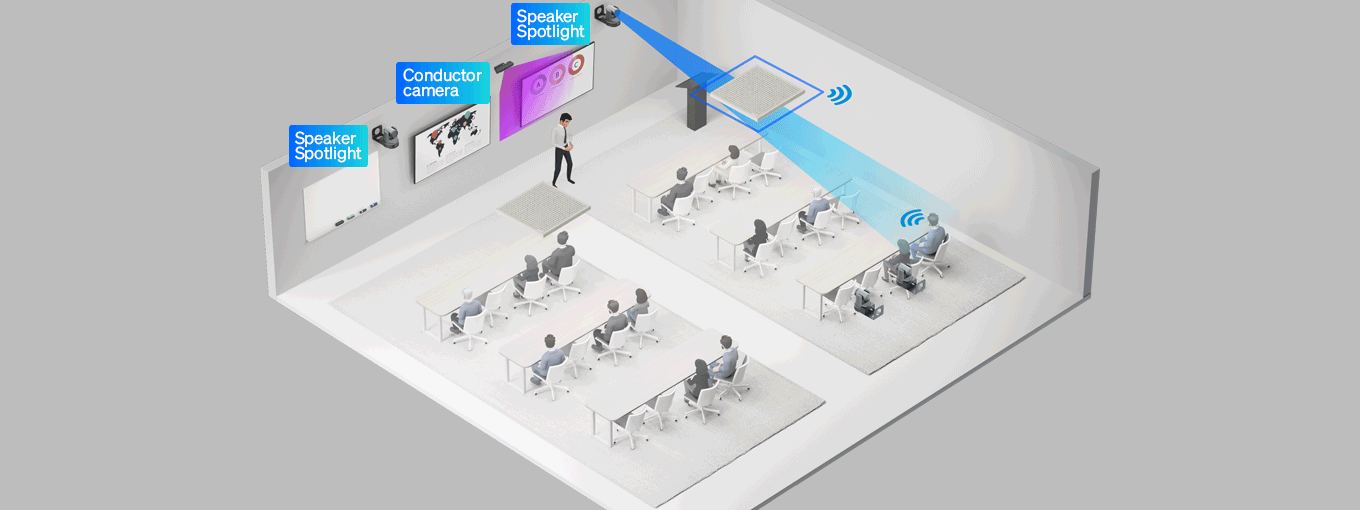

발표자 스포트라이트
Dynamic, real-time camera automation that removes the need for camera presets. Leverages both audio location data to locate the active talker and vision-assisted framing to ensure the optimal framing is always seen by the far-end.

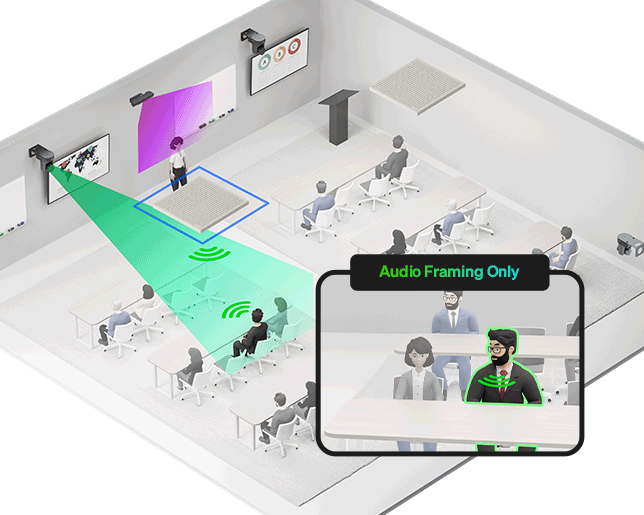

Vision-assisted Framing
Leverages the vision data from a Conductor camera to provide more accurate talker location in addition to the audio location data provided by the microphone.

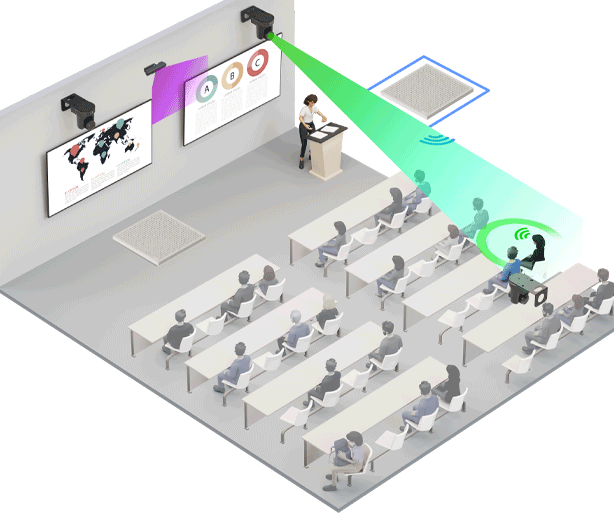

음성 활동 감지
발표자 스포트라이트
Smooth, cinematic camera framing and tracking for the presenter based on advanced computer vision.
전신 발표자 추적
전체 내용 인식에 기반한 자동 발표자 추적으로, 유동적이고 예측적인 카메라 모션과 비전 기반 자동화를 지원합니다.
전체 회의실 자동화
Trigger vision-based or audio-based automations based on how the space is being utilized with the Q-SYS control engine. Shift lighting, toggle displays, activate mics, audio, and control third-party devices.
기본 Q-SYS AI 가속
The Q-SYS VSA-100 VIsionSuite AI Accelerator delivers the Speaker Spotlight and Presenter Spotlight experience. Pair with Q-SYS cameras, audio accessories, and Q-SYS processing (requires the Q-SYS Core 24f processor or greater).
지원되는 applications 공간

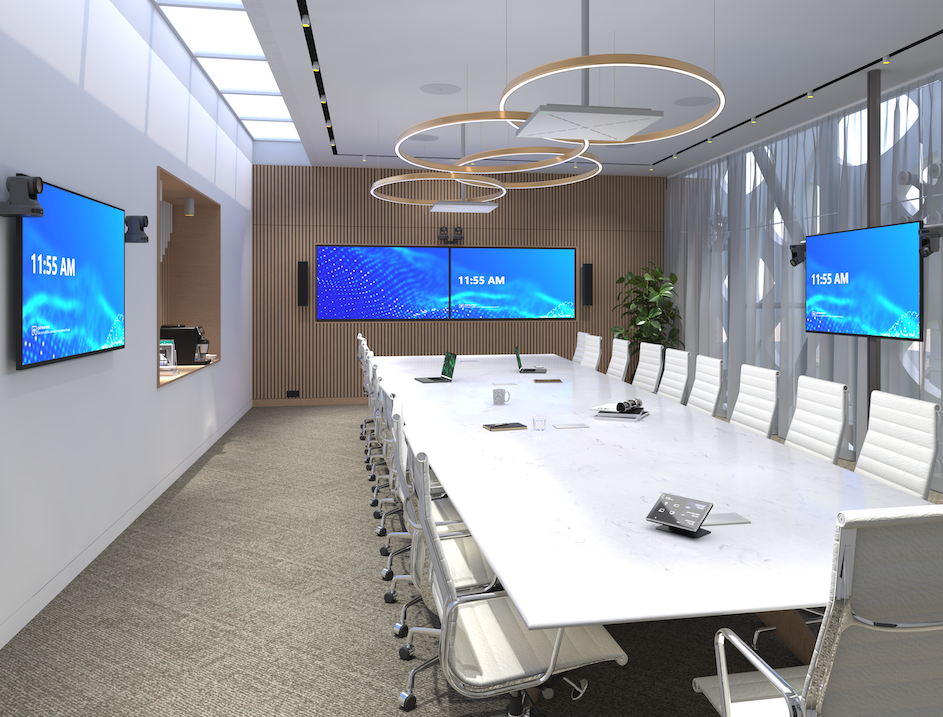

회의실
회의실 내 및 원격 참가자를 위한 미팅 형평성을 창출하세요.

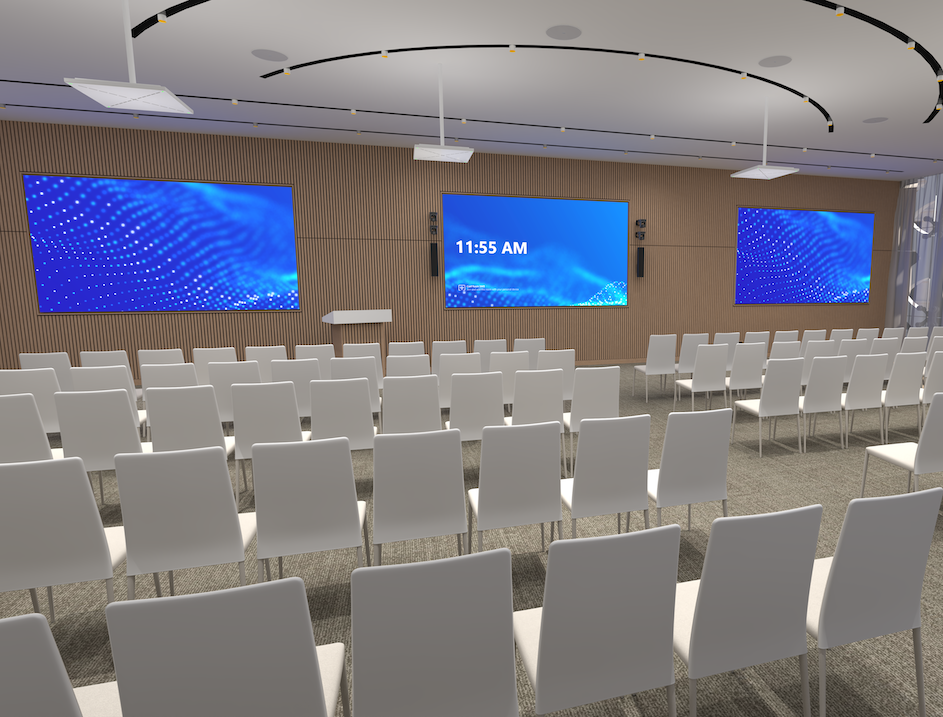

공용 공간
방송 및 공연 기능으로 고급스럽습니다.

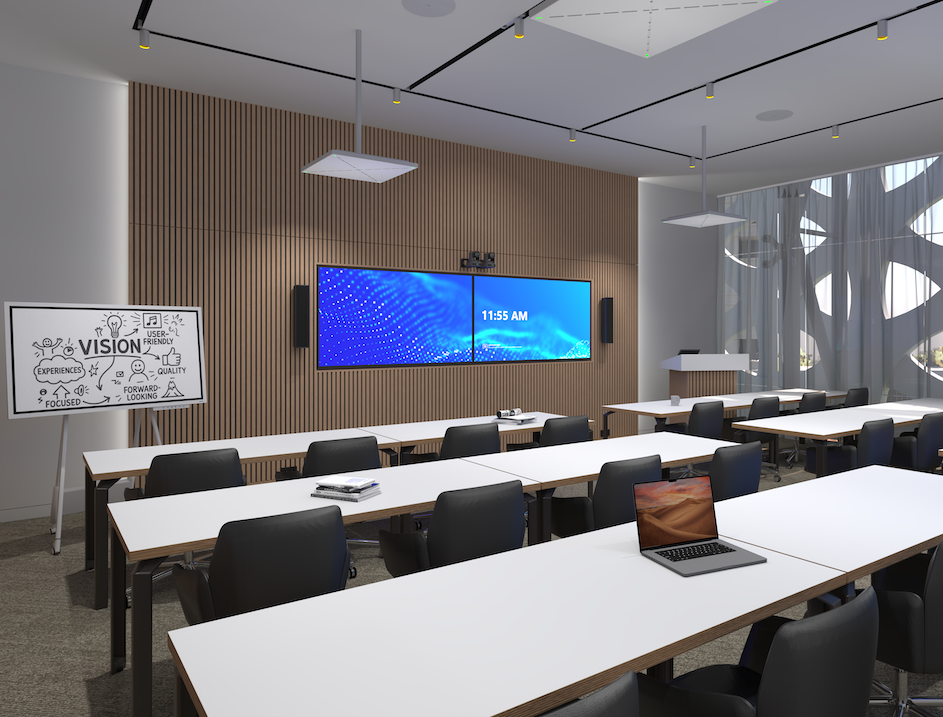

교실
강의, 화이트보드, 학생 참여를 위해 경험의 균형을 조정하세요.
VisionSuite Quick Facts
Required Q-SYS Core
Supported by Q-SYS network cameras
- Presenter Spotlight / Speaker: NC-12x80, NC-20x60
- Conductor Camera: NC-12x80, NC-20x60, NC-90-G2
Number of cameras supported
14 Speaker Spotlight, 1 Presenter Spotlight, and 1 audience-facing Conductor camera
Number of ceiling microphones supported
Up to 8 (Shure MXA920 / Shure MXA925 / Sennheiser TCC2) per room. For the best Speaker Spotlight results, we recommend the Shure MXA920 / MXA925*.
*Microphone recommendations only apply to native VisionSuite applications. For Automatic Camera Preset Recall (ACPR) applications, see the microphone compatibility list at Q-SYS Help: ACPR.
Maximum presenter tracking distance
30 m / 98 ft (NC-20x60 at Half Body shot)
Recommended active speaker distance from mic
3 m / 10 ft
Number of VisionSuite rooms supported
1 VisionSuite room per Q-SYS Core / Q-SYS Design.
Vision-assisted framing support
Supports up to 25 audience members. For greater than 25 people, framing will be based on audio location data.
Talker Validation
System-level check that uses room-wide camera vision to confirm a detected sound is coming from an actual person to prevent unwanted shots.
Not currently supported:
- Redundant Q-SYS Cores
- 분할 가능한 회의실
Access everything you need for Q‑SYS VisionSuite*.
*If you are looking to update your VSA-100 to enable Native VisionSuite capabilities, the latest VSA-100 firmware patch will require a recommissioning of your VisionSuite system. Please reach out to your local Q-SYS Sales representative to discuss your installation and obtain the firmware.
